SURVIVAL * SURVIVAL * SURVIVAL Original Prophet-T8 Parts & Manuals
*** Prophet-T8 Basic Survival Kit *** Six (6) Unique Original T8 Parts $33
Basic Survival Kit SK1008 includes unique parts for the Prophet-T8.
Prophet-T8
SK1008 Basic Survival Kit $33
* one front Panel Potentiometer
* one front Panel Switch with LED
* two #T-014 optical detectors
* 25 keyboard shims
* three optical vanes
Original NOS #E-113 Transformer $54
Original NOS #E-113 Prophet-T8 Transformer Assembly $54.
Prophet-T8 control panel $198
Image:
If you order this Prophet-T8 Control Panel SHIPPING OUTSIDE USA you may then use the INSIDE USA PayPal buttons to add any other items listed on this page to your order.
Prophet-T8 LEFT Wood Side $45
Original Left walnut woodside for the Sequential Circuits Prophet-T8.
Click or Tap on pictures to enlarge.

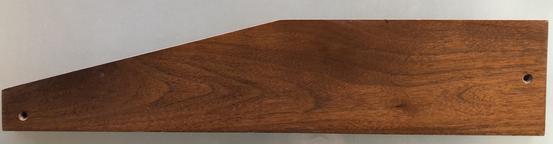

Reverse Flip Left Woodside for use on Right Side of Prophet-T8..
2 Walnut Spreaders for Prophet-T8 $38 Front Rail and Center Cross Beam
*****Prophet-T8 front rail and center crossbeam walnut wooden spreaders for $38***** ****47 inches long****

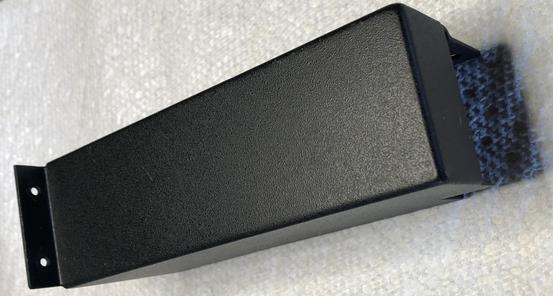

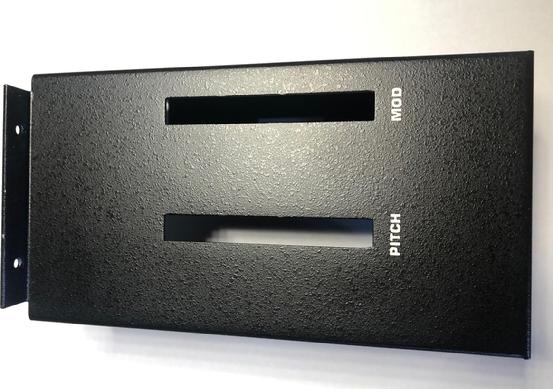

NOS Prophet-T8 pitch/mod box $25
Original New Old Stock (NOS) Prophet-T8 Pitch/Mod Box $25

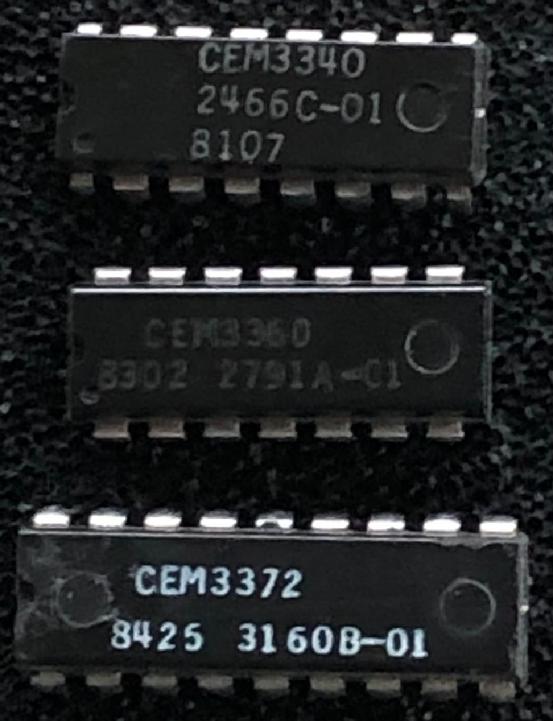

Prophet-T8 CEM Integrated Circuits **** Original ICs *** NOT Clones **** Drop-in Replacement CEM ICs
CEM ICs available individually while supplies last
Original #I-321/CEM3340 VCO IC SOLD OUT
Original #I-327/CEM3360 dual VCO IC $155
Original #I-331/CEM3372 Signal Processor IC SOLD OUT

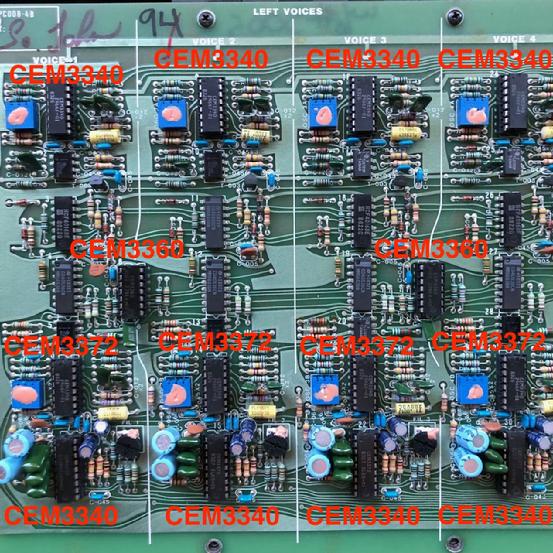

The Prophet-T8 requires sixteen (16) #I-321 VCO ICs,
eight (8) #I-331/CEM3372 Signal Processor ICs
and four (4) #I-331/CEM3360 dual VCA ICs to operate.
A failure in any one of these ICs will result in a bad voice.
* Critical Component for T8 keyboard * #T-014 Optical Sensors *** 15 for $25
The #T-014 is an optical sensor that measures key veolocity.
The Prophet-T8 has a 76-note (A to C) velocity sensitive keyboard.
Two #T-014 sensorsper key for 76 keys = 152 #T-014 key sensors
Critical Component * each T8 key uses 2
Click or Tap on picure to enlarge
Prophet-T8 Tech Manual TN1008A $58
TN1008 is technical documentation that includes 18 full size schematics and factory service procedures for the Sequential Circuits Prophet-T8.

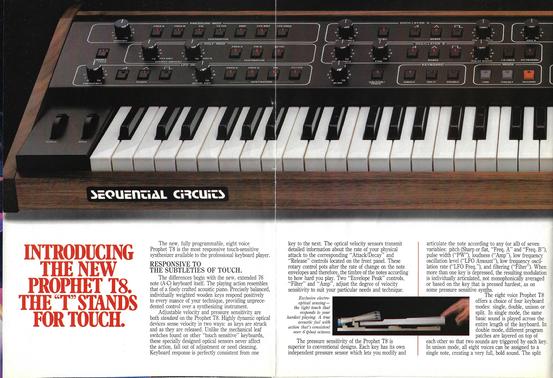

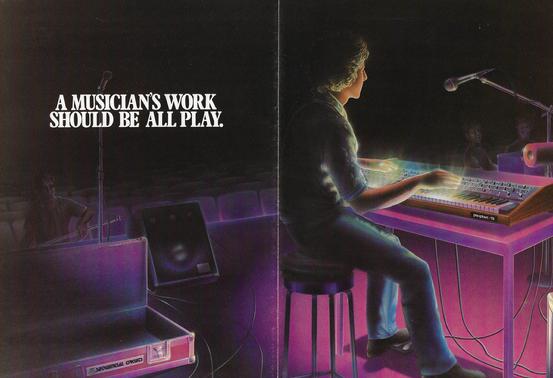

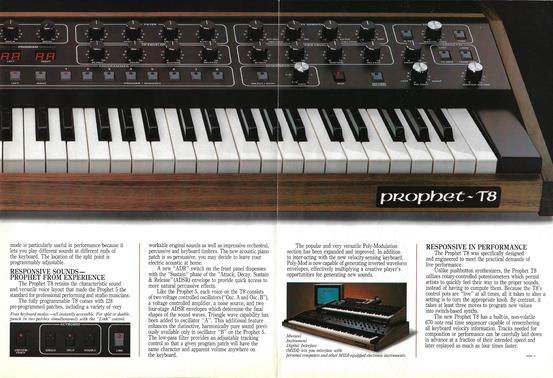

** Sequential Circuits Prophet-T-8 ** ** Original 1983 Sales Brochure unfolds into a 36 inch long T8 Centerfold
* * * * Original Sequential Circuits 1983 sales brochure introducing the Prophet-T8 * * * * *
Brochure opens up into a full color centerfold of the 76-note Prophet-T8 three feet in length.
