A failure in any one of these ICs will result in a bad voice.
click or tap on pictures to enlarge
Original TM1000D Prophet-5 Revision 3 Technical Manual in Sequential Binder
Prophet-5 Rev 3 Tech Manual * September 1980 *
Used Original
Prophet-5 Rev3
Technical Manual TM1000D
in a Sequential Circuits 3-ring
binder for $85
& FREE shipping inside the USA
Original Prophet-5 Pratt-Read keyboard SOLD
Prophet-5 Pratt-Read keyboard - backside
Restored Original Prophet-5 Pratt-Read keyboard with new key bushings SOLD
Original Prophet-5 Rev3 Operations Manual in Sequential Circuits binder with FREE SHIPPING INSIDE USA
Prophet-5 Rev 3 Ops Manual * April 1980 *
Used Original
Prophet-5 Rev3
Operations Manual CM1000D
in a Sequential Circuits 3-ring binder for $65
& FREE shipping inside the USA
click or tap on pictures to enlarge
Prophet-5 Rev3.0 CPU Board#3 $198
FREE shipping to anywhere in the USA
untested * unpopulated * as-is
Prophet-5 Revision 3.0 CPU board * ONLY ONE AVAILABLE
Prophet-5 Rev3.2 CPU Board#3 $199
with MIDI 10-5 OS
FREE shipping to anywhere in the USA
untested * unpopulated * as-is
Prophet-5 Rev 3.2 PC board with MIDI v10-5 OS * Only One Available
Replace Worn Nameplates for $34
Worn PROPHET-5 front nameplate
Worn SEQUENTIAL CIRCUITS front nameplate
Pitch & Mod pots, brackets, and cable assembly $29
Used in the Prophet-10, Pro One, Prophet 600, Prophet-T8, Sixtrak, Split-8
Pitch/Mod wheels NOT available.
Red Fuse Cap & 3/4 amp slo blo fuse $22
FREE shipping to anywhere in the USA
Prophet-5 MIDI Kit $379
A MIDI kit with v10-5 OS is available from Wine Country for the Revision 3.2 or 3.3 Prophet-5 that offers MIDI IN and OUT jacks, with operation in OMNI & POLY Modes over 16 MIDI channels with program select & alternate release, plus response to incoming pitch wheel data in 3-ranges & current program MIDI data dumps. Installation and operational instructions are included. Estimate 2 to 3 hours for MIDI kit installation by a competent service technician.
Prophet-5 Rev3.2/3.3 MIDI kit installed
Revision 1 Prophet-5 control panel $197
Image:
** Original Prophet-5 Revision 1 ** Control Panel PC boards for $597
Prophet-5 Rev 1 Control Panel boards
** PCB#1 & PCB#2 ** swap-out ready **
tested & qualified ** fully functional
Image:
New Rev2 Power Supply Board and Toroid Transformer for Rev2 & Rev3
* new Toroid Transformer for Rev2 or Rev3 $99
Eliminates ambient AC hum produced by original transformer.
* original 2708 Rev2 Prophet-5 OS ROMs $59
Replace original 2708 OS eproms in your Prophet-5 Rev2 or Rev 3.0
with 2716 OS eproms and a new power supply for improved reliability.
* Rev2 v6.1 OS on 2716 eproms $39
* Rev2 v7.0 OS on 2716 eproms $39
* Rev2 7.0C OS on 2716 eproms $49
* Rev3.0 v8.1 OS on 2716 eproms $49
* new Rev2 Power Supply Assembly for 2716s $199
toroid transformer * new PSU for 2716s
New PSU for 2716 OS eproms installed
SSM ICs for Rev1 and Rev2 Prophet-5 Email us for price & availability
original 6508 SRAM ICs $35 each
Shipping is additional. If you are interested in purchasing original Sequential Circuits parts from Wine Country please email us at Prophet@WineCountrySequential.com.
Your address is required to determine the COST OF SHIPPING.
Original Sequential Circuits Rev2 parts from Prophet-5 serial number 0581
Used Sequential Circuits Revision 2 Parts
from Prophet-5 serial number 0581

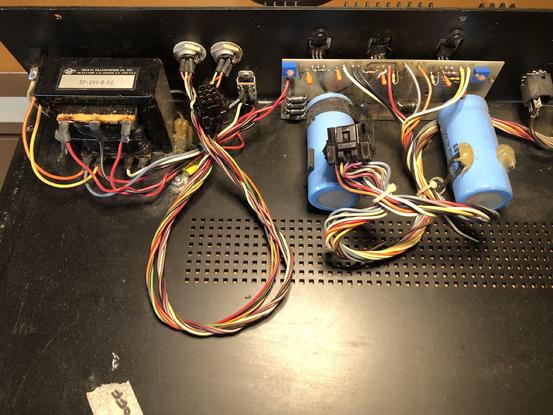

Bottom Panel with transformer, power switch, & jacks $129
Control Panel SOLD

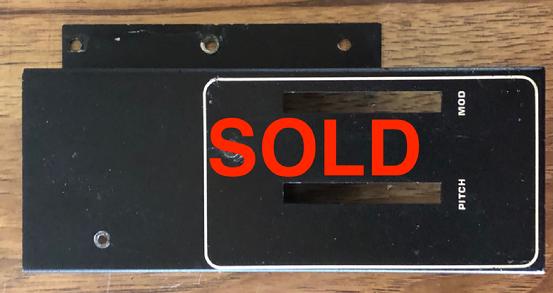

Pitch Mod Box SOLD
Center Walnut Spreader SOLD
Front Walnut Spreader $59

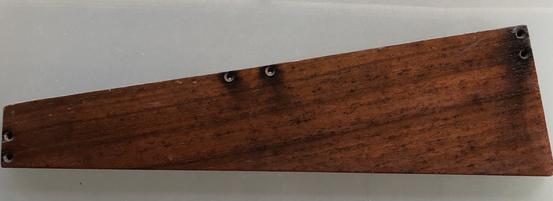

Rear Walnut Spreader $39
black aluminum bracket for front spreader $29
right side keyboard mounting bracket $19
Shipping cost is additional & depends on your location.
